Single Output With PFC Switchmode Power Supply 199 * 99 * 50mm

Brand Name : Winston/OEM

Model Number : SP-200W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : USD24.1

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Warranty : 2 Years

OEM : YES

ODM : YES

Condition : Original New

Weight : 0.85KG

Single Output : power 200w

Working temperature : -10℃~+60℃

Input voltage range : 85-264VAC 120-370VDC 47-63Hz

Contact Now

Single Output With PFC Switching Power Supply 199 * 99 * 50mm Efficiency 79%


Summary

  • Single output: power 200w
  • PF>0.96@115VAC: PF>0.93@230VAC

Technique parameter:

Model SP-200-5 SP-200-12 SP-200-24 SP-200-48
DC output voltage current 5V 0-40A 12V 0-16.7A 24V 0-8.4A 48V 0-4.2A
Wave and noise 100mVp-p 100mVp-p 150mVp-p 240mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±1% ±0.5% ±0.5% ±0.5%
Efficiency 75% 79% 83% 84%
Adjustable range for DC voltage ±10% ±10% ±10% ±10%
input voltage range 85-264VAC 120-370VDC 47-63Hz
Inpact current Cold start current 40A/230VAC
Overload proctection 105%-150% cut off the output, automatic recovery
Over-voltage protection 110%-135% shut down O/P voltage, re-power on to recover
Setup rise hold up time 600ms, 30ms, 20ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature -10℃~+60℃
Overall dimension 199*99*50mm
Weight 0.85kg
Packing 42.5*28.5*22.6cm/20PCS/17kg

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

* Prompt reply: Any inquiry or questions would be replied within 24 hours.

* Quality Product: Manufacture company, each of the products is tested and calibrated.

* Hospitality: Offer smiling service and your visiting is highly welcomed

* Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms

FOB ,CIF ,CFR,EXW,DDP

Payment terms

T/T,L/C,Western union,Paypal,Escrow,MoneyGram

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery

Payment conditions

30% deposit in advance,70% balance before shipping.

Delivery time

3-7working days after deposit,2-4 working days for inventory

Packing

Neutral carton,Wooden case for large size

Shipping

By sea,by air and by express delivery

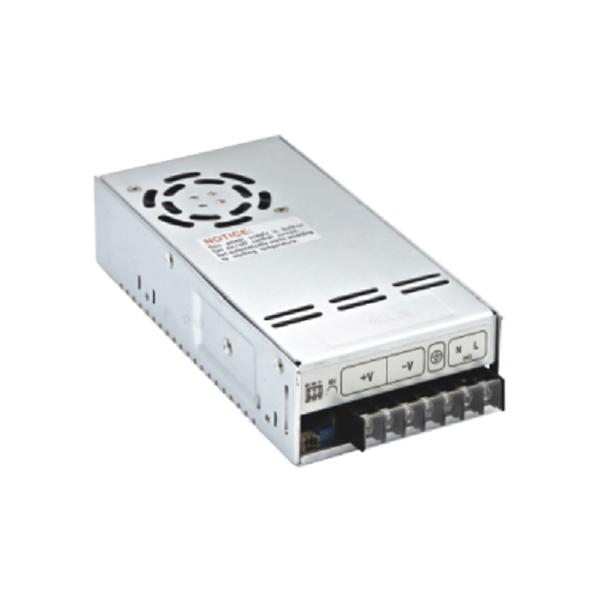

Product Picture
